JR-A Series Winder
About Machine 1.The way of feeding is free falling belt, which is easy to operate. 2. Wind breaking-strip: when the strip is broken and the machine will be stopped automatically. After connecting the strip simply, core winding can be contin...
Scope of Application ：
Automatically wind Amorphous/Nanocrystalline Cores
Inquire
- Products Profile
- Specification
- Key Parts
About Machine
1.The way of feeding is free falling belt, which is easy to operate.
2. Wind breaking-strip: when the strip is broken and the machine will be stopped automatically. After connecting the strip simply, core winding can be continued with right dimension, save strip and yield rate can be improved.
3. Welded components have been improved, and improve the explosive cracking of 107 brittle strips after welding. Compatible with 107 / 101 tapes of various properties
4. The cutter is improved as round blade that it is free for debugging and easy to change. Convenient and quick. And the cost of blade is only 10% of the original steel tools.
5. Human-machine interface is changed to touch screen. Easy for parameter setting. The adjustment of core size is visual.
|
Amorphous/nanocrystalline Minicore automatic winding machine Spec |
|
Model |
Description |
ribbon width |
core inner diameter |
core outer diameter |
output/hour
|
comments
|
|
JR-A1 |
Amorphous/nanocrystalline Minicore automatic winding machine
|
2.6~20mm |
8~33 mm |
Max 50 |
max 800 pcs |
Inner and outer spot welding are done |
|
JR-A2 |
8~30 mm |
20~60 mm |
Max 80 |
max 800pcs |
Inner and outer spot welding are done |
|
JR-A3 |
2.5-8mm |
3-8mm |
Max 20 |
max 800 pcs |
Inner and outer spot welding are done |
|
JR-A4 |
Amorphous/nanocrystalline Minicore automatic winding machine for big cores |
10-30mm |
40-120 |
Max 155 |
max 100 pcs |
Inner and outer spot welding are done |
execute system
|
winding: servo motor
feeding: servo motor |
|
Action by Pneumatic components |
air pressure
requirement |
0.4Mpa air pressurer shall be provided by the client |
|
power |
AC220V-AC230V/50Hz 0.75Kw (JR-A) 2.5Kw(JR-B) |
|
Customized |
1. JR-A2 can be customized to JR-A2L that strip width will be 50mm(max). 2. Cores weight sorting online: iron cores will be weighed and sorted immediately after winding, and the machine will be stopped automatically in case of continuous defects. Reduce defective cores. |

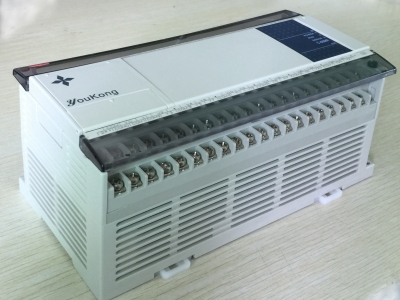

PLC System
Adopt high performance YK PLC control system, which be able to generate accurate output pulse, and make the instruction cycle more faster and stable.
The program is designed to integrate sophisticated function to greatly reduce the time used by operator for data input. Besides, the self protecting program for all actions performed by the machine to avoid the damage.

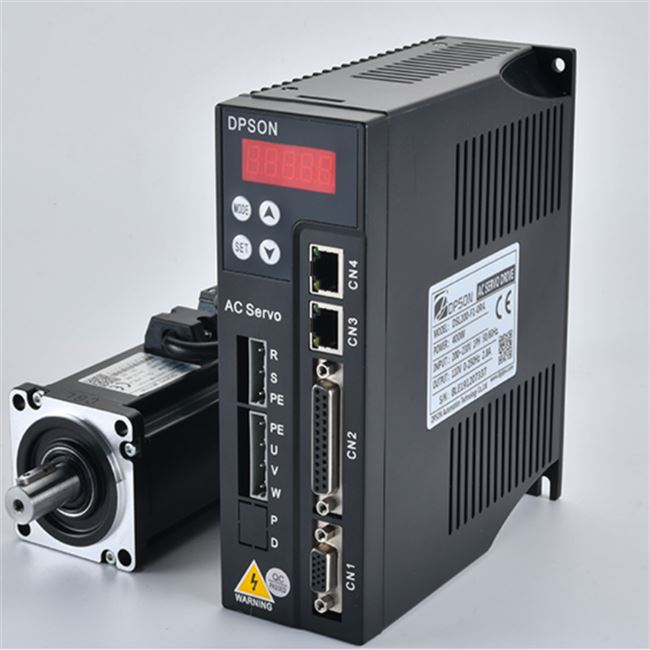

SERVO MOTOR SYSTEM
DLS200 series is the latest generation of cost-effective AC servo products of Dpson. It can be equipped with various open-loop and closed-loop control systems, built-in position control, single axis control, internal speed control and other functions, and adopts international advanced special DSP processor for motor control and IPM intelligent power module, with high integration, small volume, perfect protection and good reliability.

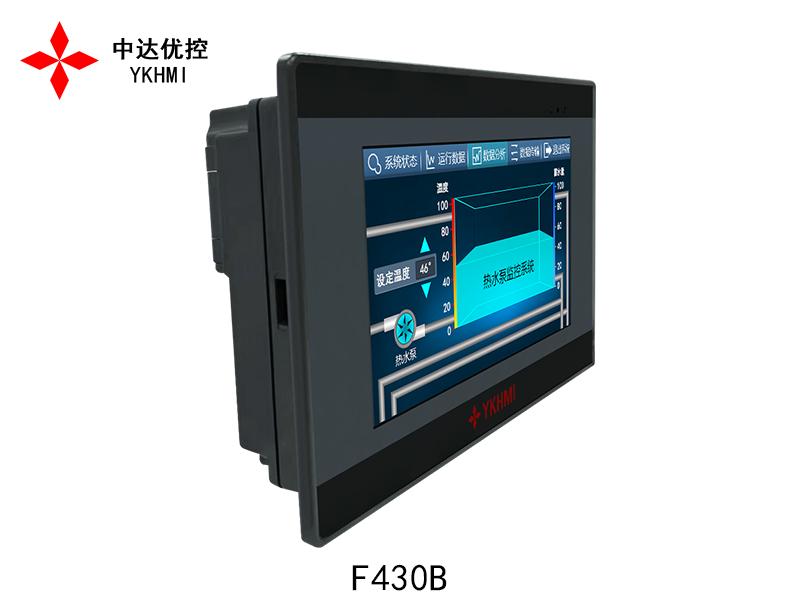

HMI
* 7" YK F-Series Touch Screen.
* Equipped with ARM9 400MHz CPU
Greatly improve data processing and images display.
* Language: English / Chinese

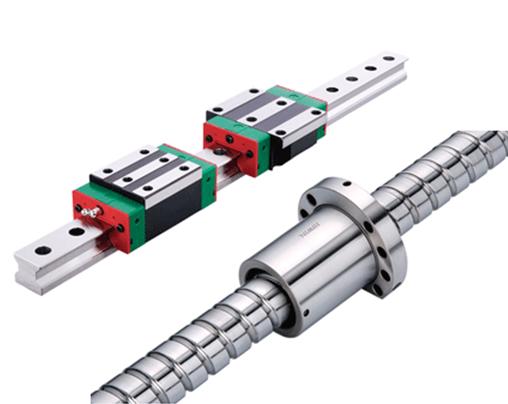

Motion Components
Ballscrews consist of a screw spindle and a nut integrated with rolling elements that cycle through a return mechanism. Ballscrews convert rotary motion into linear motion, and are most commonly used in industrial machinery and precision machines.
Hiwin precision ballscrews are made through a grinding process of the screw spindle. Precision ground ballscrews provide high positioning accuracy and repeatability, smooth movement and long service life.
