JR-B Series Winder_WADE ELECTRICAL

About Machine

JR-B is specially designed for winding large-size amorphous and nanocrocrystalline magnetic cores. Production size: minimum inner diameter 35, maximum outer diameter 350; Strip width max. 80.

The machine has simple mechanism and convenient operation. In order to make users get the best cost performance, the machine adopts semi-automatic production mode: manual only needs to do simple belt feeding and reclaiming operations. Winding and tension adjustment are carried out automatically. The magnetic core will stop automatically after reaching the set outer diameter. The magnetic core return is automatic demoulding. Equipped with built-in spot welder.

The magnetic core winding adopts a stepless tension adjustment system. After the winding tension is adjusted, the strip can ensure constant tension and consistent tightness from the beginning to the end of winding. The winding spindle and discharge shaft adopt servo motor system.

Amorphous/Nanocrystalline core Semi-automatic winding machine Spec
Type	Description	ribbon width	core inner diameter	core outer diameter	output/hour	comments
JR-B	Amorphous/nanocrystalline core semi-automatic winding machine	Max 80mm	Min 35 mm	Max 350mm	Max 300 pcs	Inner and outer spot welding by hand
control system	PLC
execute system	winding:servomotor feeding:servomotor
	taiwan pneumatic component
air pressure requirement	0.4Mpa air pressurer shall be provided by the client
power	AC220V/50Hz 0.75Kw
dimension	L1100mm X W600 X H1400
weight	150Kg

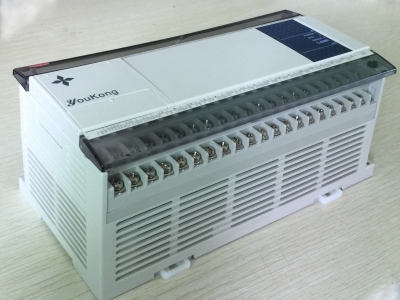

PLC System

Adopt high performance YK PLC control system, which be able to generate accurate output pulse, and make the instruction cycle more faster and stable.

The program is designed to integrate sophisticated function to greatly reduce the time used by operator for data input. Besides, the self protecting program for all actions performed by the machine to avoid the damage.

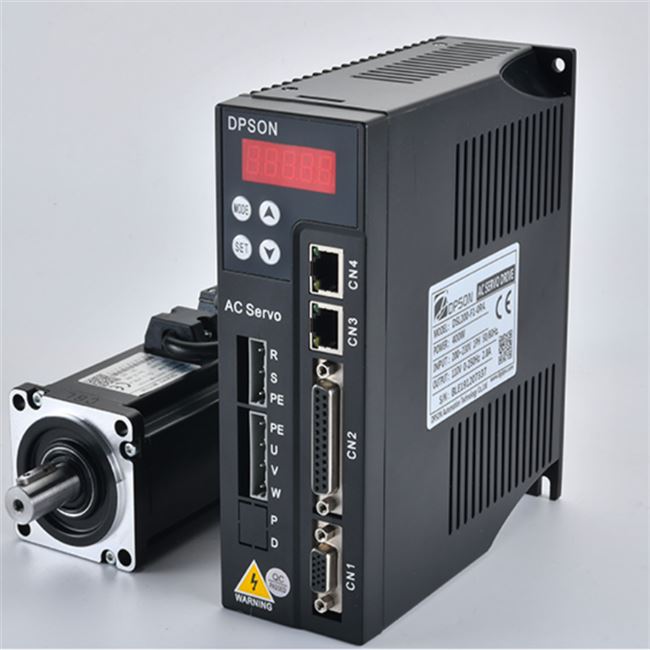

SERVO MOTOR SYSTEM

DLS200 series is the latest generation of cost-effective AC servo products of Dpson. It can be equipped with various open-loop and closed-loop control systems, built-in position control, single axis control, internal speed control and other functions, and adopts international advanced special DSP processor for motor control and IPM intelligent power module, with high integration, small volume, perfect protection and good reliability.

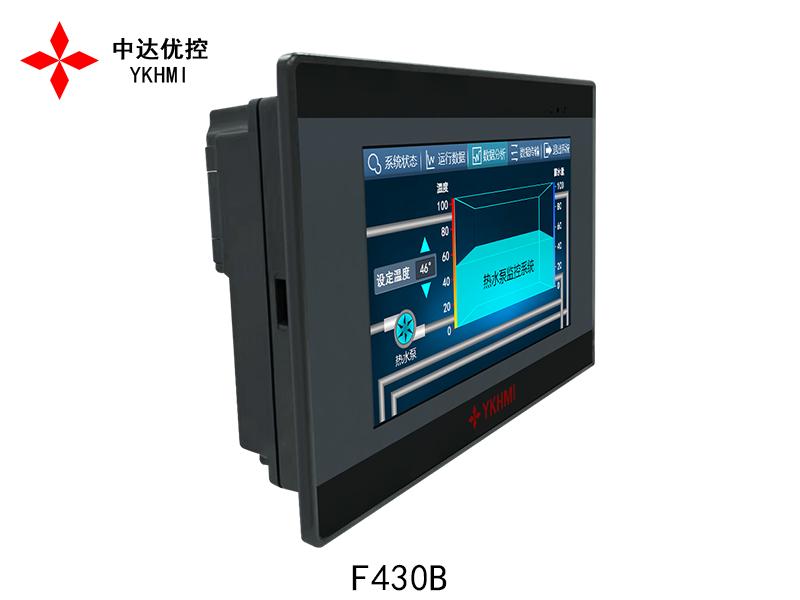

HMI

* 7" YK F-Series Touch Screen.
* Equipped with ARM9 400MHz CPU
Greatly improve data processing and images display.
* Language: English / Chinese

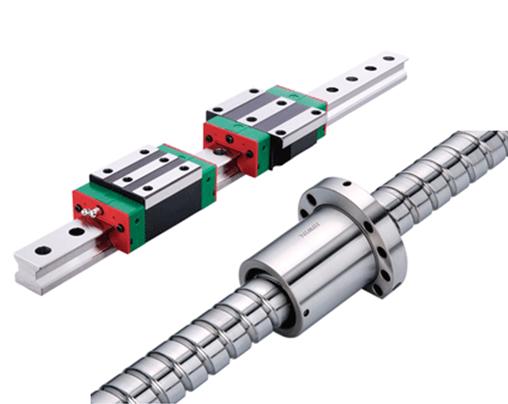

Motion Components

Ballscrews consist of a screw spindle and a nut integrated with rolling elements that cycle through a return mechanism. Ballscrews convert rotary motion into linear motion, and are most commonly used in industrial machinery and precision machines.

Hiwin precision ballscrews are made through a grinding process of the screw spindle. Precision ground ballscrews provide high positioning accuracy and repeatability, smooth movement and long service life.
