Silicon Ribbon Welder_WADE ELECTRICAL

Machine Brief

This equipment is mainly used for automatic welding of silicon steel sheets, stainless steel sheets. Because of the automatic running mechanism, the weld is well formed and beautiful. The pneumatic clamping device uses a special device to ensure safety and accuracy of the clamping device. The manual completion part only places the piece to be welded in a predetermined position, and the belt device is pressed. Longitudinal welding is driven by a motor, which ensures stable walking while being precisely controlled. The position of the welding head can be adjusted by the miniature XZ platform.

Machine Features

1. Suitable for straight seam welding of coils and panels of various metals such as stainless steel and silicon steel sheets.
2. Single-sided welding for both sides, the welding quality is stable.
3. The workpiece adopts a piano-type pneumatic pressing mechanism.
4. The thickness of the weldable workpiece is 0.2 -1.0MM, the welding effect is beautiful and the efficiency is high.
5. The welding speed is adjustable, all kinds of movements are fast and accurate, the working performance is stable and reliable, and the machine, electricity and air control are integrated.
6. Widely used in metal manufacturing and processing industries such as hardware and home appliances

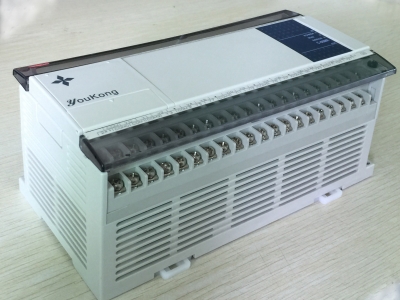

PLC System

Adopt high performance YK PLC control system, which be able to generate accurate output pulse, and make the instruction cycle more faster and stable.

The program is designed to integrate sophisticated function to greatly reduce the time used by operator for data input. Besides, the self protecting program for all actions performed by the machine to avoid the damage.

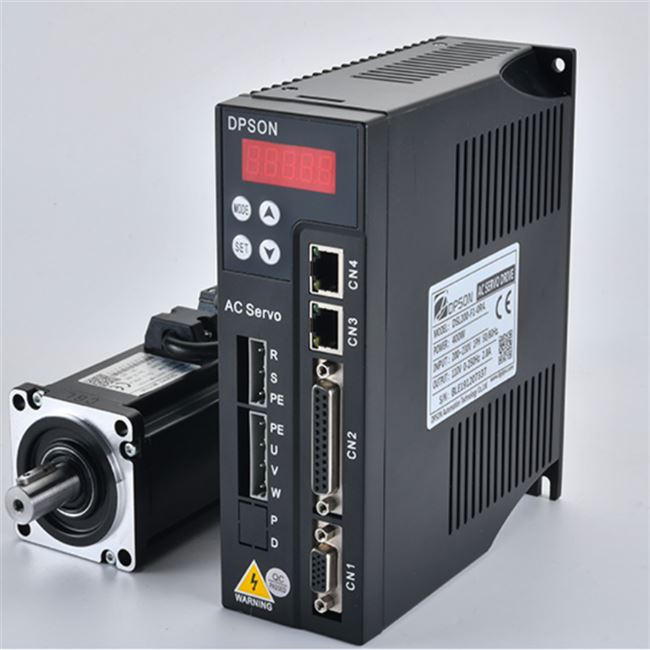

SERVO MOTOR SYSTEM

DLS200 series is the latest generation of cost-effective AC servo products of Dpson. It can be equipped with various open-loop and closed-loop control systems, built-in position control, single axis control, internal speed control and other functions, and adopts international advanced special DSP processor for motor control and IPM intelligent power module, with high integration, small volume, perfect protection and good reliability.

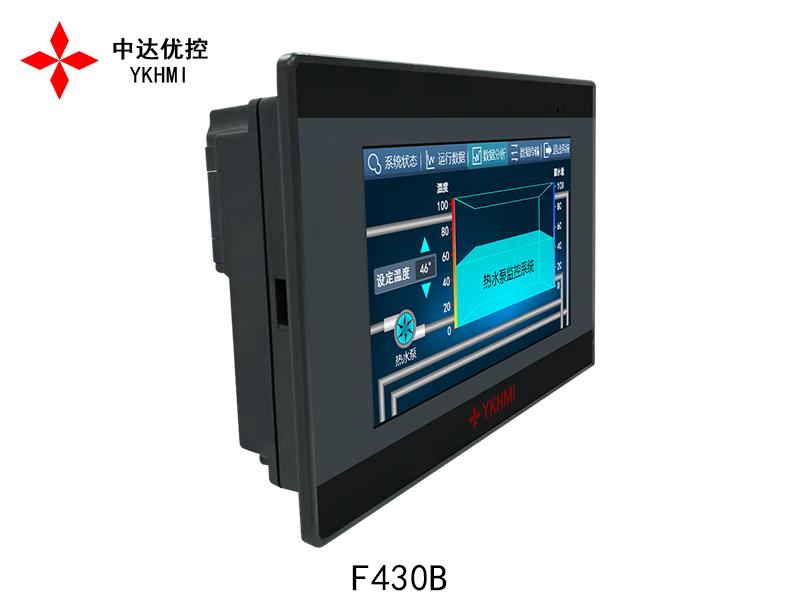

HMI

* 7" YK F-Series Touch Screen.
* Equipped with ARM9 400MHz CPU
Greatly improve data processing and images display.
* Language: English / Chinese

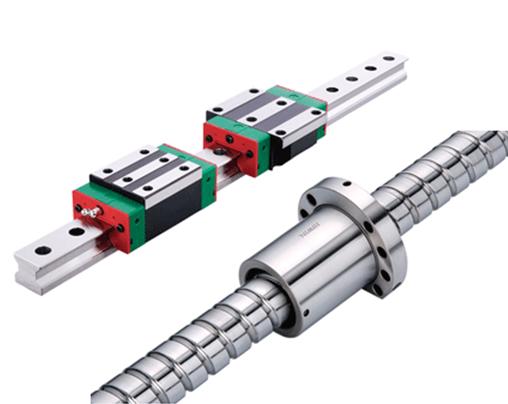

Motion Components

Ballscrews consist of a screw spindle and a nut integrated with rolling elements that cycle through a return mechanism. Ballscrews convert rotary motion into linear motion, and are most commonly used in industrial machinery and precision machines.

Hiwin precision ballscrews are made through a grinding process of the screw spindle. Precision ground ballscrews provide high positioning accuracy and repeatability, smooth movement and long service life.
