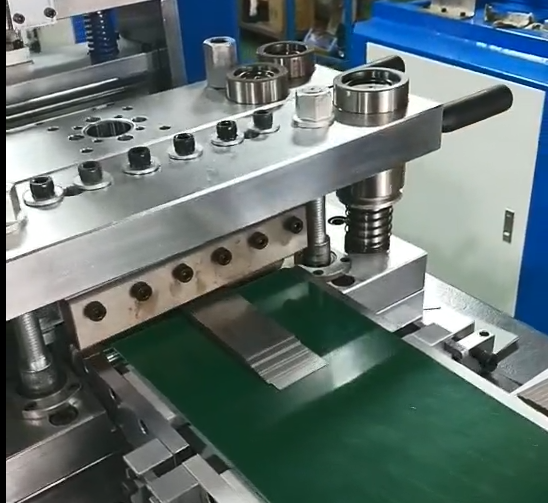

90° Strip Cutting Line

About Machine SL-200 and SL-300 are designed and built for cores of small transformers such as Inverters and UPS that made of Grain Oriented or Non-Grain Oriented Silicon Steel to cut 90 shapes (Strip Laminations). * Fully Automatic Strip L...
Scope of Application :
For cores of small transformers such as Inverters and UPS that made of Grain Oriented or Non-Grain Oriented Silicon Steel to cut 90° shapes (Strip Laminations).
Inquire
  • Products Profile
  • Specification

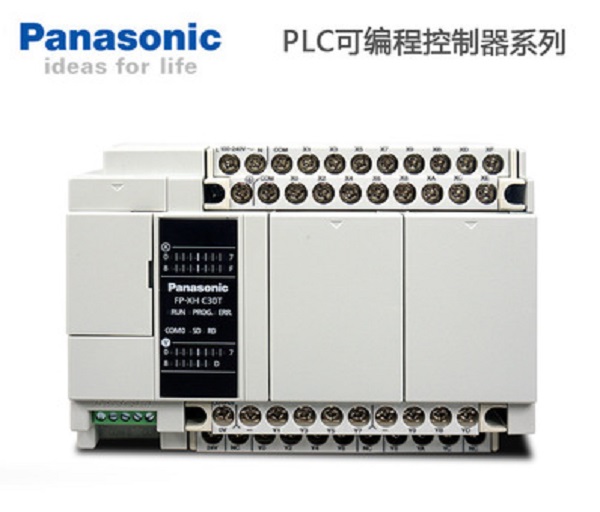

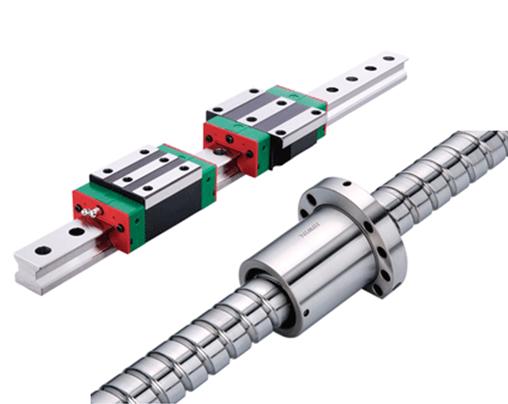

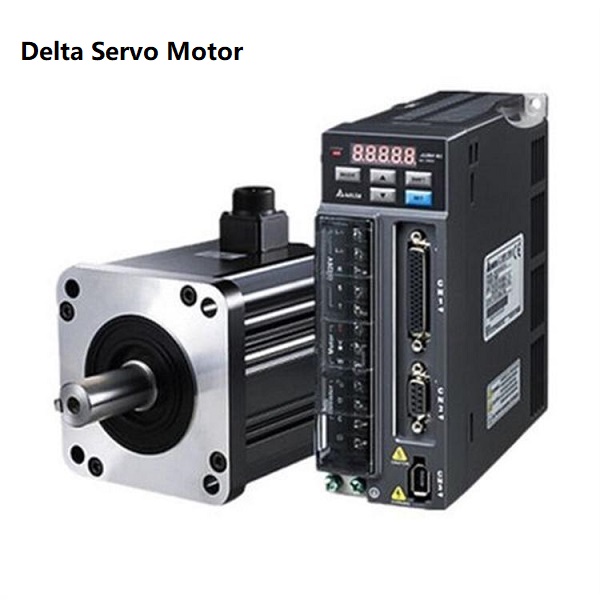

  • Key Parts
About Machine

SL-200 and SL-300 are designed and built for cores of small transformers such as Inverters and UPS that made of Grain Oriented or Non-Grain Oriented Silicon Steel to cut 90° shapes (Strip Laminations).

* Fully Automatic Strip Lamination Core Cutting Line
* High Reliability and Compact Design
* Low Operating Cost: Tooling and Maintenance
* High Precision @ Tolerance +/- 0.01mm



(1) 90° Strip Lamination Cutting

* With Holes:

              Hole Size: 6mm - 25mm

              Hole Number: 15 Holes (Max)

              Length: 20-2000mm




 Without Hole:

             Length: 20-2000mm



(2) Lamination Cutting Speed



At 95% of Maximum Speed (Range: 1-99)

  Lamination Size: 80mm X  250mm /  Thickness =0.35mm

     No Hole =   110 Piece/Minute =  2,880 KG/ 8 hrs

     One Hole =   58  Piece/Minute = 1,520 KG/ 8 hrs

    Two Holes =  38  Piece/Minute  =  996 KG/ 8 hrs

    Three Holes = 30  Piece/Minute  = 786 KG/ 8 hrs
